Bitumen Pressure Distributor

745000 INR/Unit

Get a Price/Quote

Product Details:

Automatic Grade Automatic
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Bitumen Pressure Distributor Price And Quantity

Price 745000 INR/Unit
Minimum Order Quantity 1 Unit

Bitumen Pressure Distributor Product Specifications

Automatic Grade Automatic

Bitumen Pressure Distributor Trade Information

Supply Ability 4 Unit Per Month
Delivery Time 10 Days
Sample Available Yes

Product Description

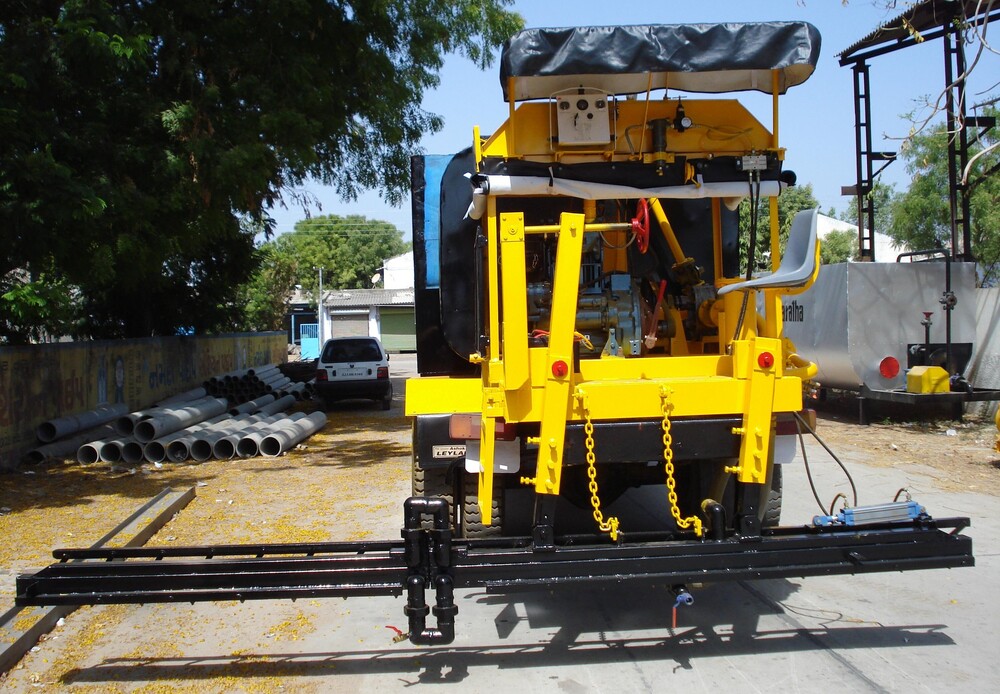

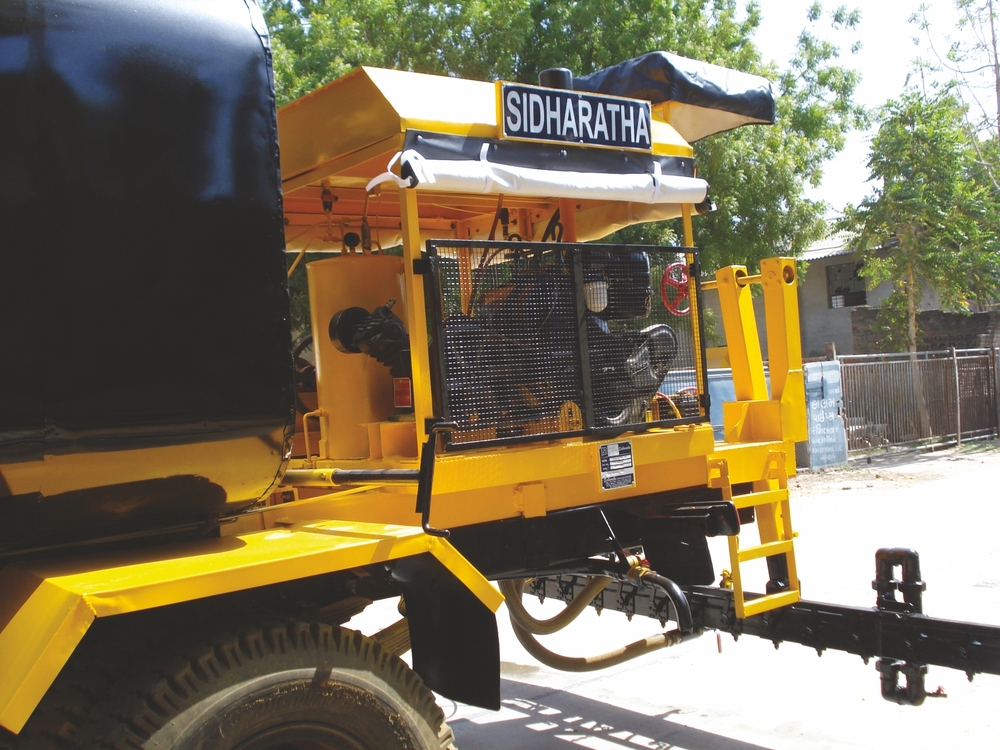

Bitumen Pressure Distributor is used to uniformly spread hot asphalt cement before the asphalt mix is laid out. Our bitumen pressure distributors are consistent and can deliver accurate results.Bitumen Pressure Distributor gives uniform, unbroken and prescribed quantity of hot bitumen or emulsion. These units can be supplied as a module to suit mounting on the customers truck chassis or can be supplied completely along with standard truck chassis.

Specification

Model	SIPL-4000	SIPL-6000	SIPL-8000	SIPL-10000
Tank Detail
Length-L	2400 mm	3000	4000 mm	4400 mm
Width-W	2108 mm	2108 mm	2108 mm	2208 mm
Height-H	1708 mm	1708 mm	1708 mm	1758 mm
Capacity	4000 Ltr.	6000 Ltr.	8000 Ltr.	10,000 Ltr.
Insulation	50 mm	50 mm	50 mm	50 mm
Shape Elliptical	Elliptical	Elliptical	Elliptical
Burner
Type	Compressed Air Type	Compressed Air Type	Compressed Air Type	Compressed AirType
Burner Fuel Tank	50 Ltr.	50 Ltr.	50 Ltr.	50 Ltr.
Engine Fuel Tank	20 Ltr.	20 Ltr.	20 Ltr.	20 Ltr.
Service Tank	20 Ltr.	20 Ltr.	20 Ltr.	20 Ltr.
Recommended Chachiss
Wheel Bas - WB	148	176	182	198
Clear Chechiss Length - CL	5000 mm	5600 mm	6600 mm	7000 mm
Min. Height of Chechiss - CH	1150 mm	1150 mm	1150 mm	1150 mm
Bitumen Pump	Internal Gear Pump	Internal Gear Pump	Internal Gear Pump	Internal Gear Pump
Driving Unit
Engine Model	Kirloskar HA 294	Kirloskar HA 294	Kirloskar HA 294	Kirloskar HA 294
Engine Output	18.5 kW@2000rpm,	18.5 kW@2000rpm,	18.5 kW@2000rpm,	18.5 kW@2000rpm,Air Cooled
Engine Output	Air Cooled	Air Cooled	Air Cooled	18.5 kW@2000rpm,Air Cooled
Air Compressor	Twin Cylindered,	Twin Cylindered,	Twin Cylindered,	Twin Cylindered,2.25kW
	2.25Kw	2.25Kw	2.25Kw	2.25Kw

Components Of Bitumen Sprayer.

Fully Insulated (Galvanised/S.S. Sheet) bitumen tank fitted with automat burner for earth to bitumenat required temperature.

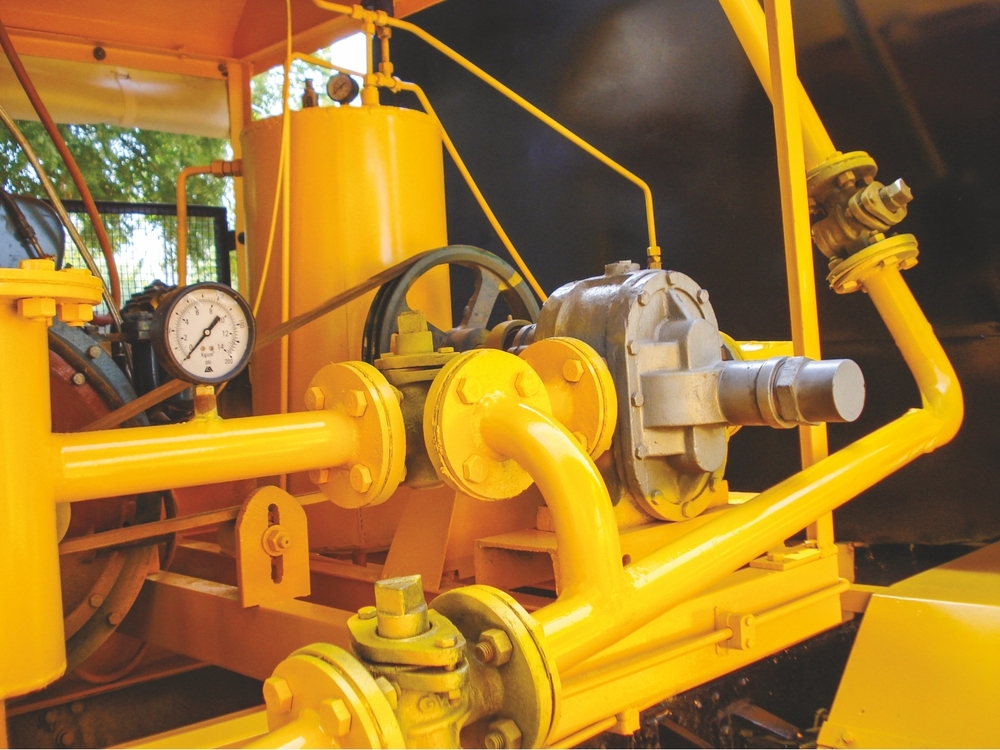

Bitumen Puping system comprising of positive displacement gear pump, Bitumen Ines and valves.

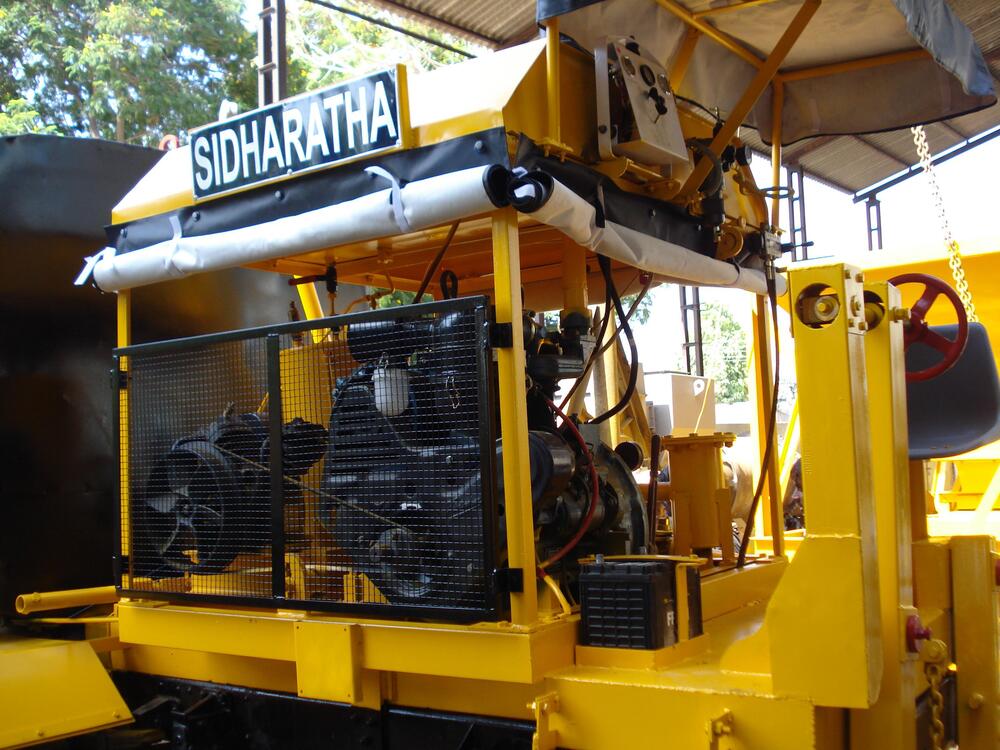

25 HP Air Cooled two cylinder Engine
Air Compressor

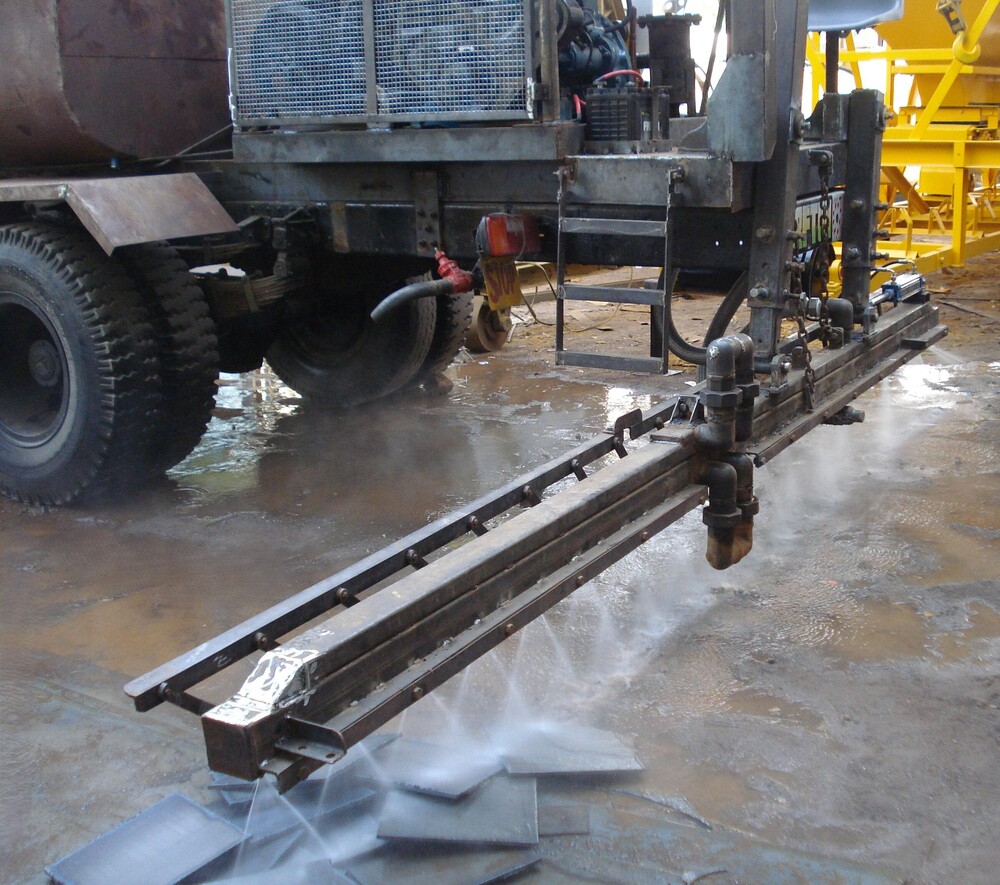

Foldable spray bar with basic width 2.5 mtr. and extendable up to 4.2 mtr.. is fitted with pneumatically operated and easily adjustable nozzles placed at standard pitch of 225 mm. Spray bar delivers bitumen at ranging from 0-6 kg/sqm.
Manual hand spraying attachment.
Controls: The spraying system incorporates some of the best controls in terms of automation aanopeions well as maintenance making the equipment very rugged, easy to use & maintain. The automation provided is based on the parameters of asphalt
