Mobile Drum Mix plant 35

Model

DM-45(40-60TPH)

DM-50(60-90TPH)

DM-60(90-120TPH)

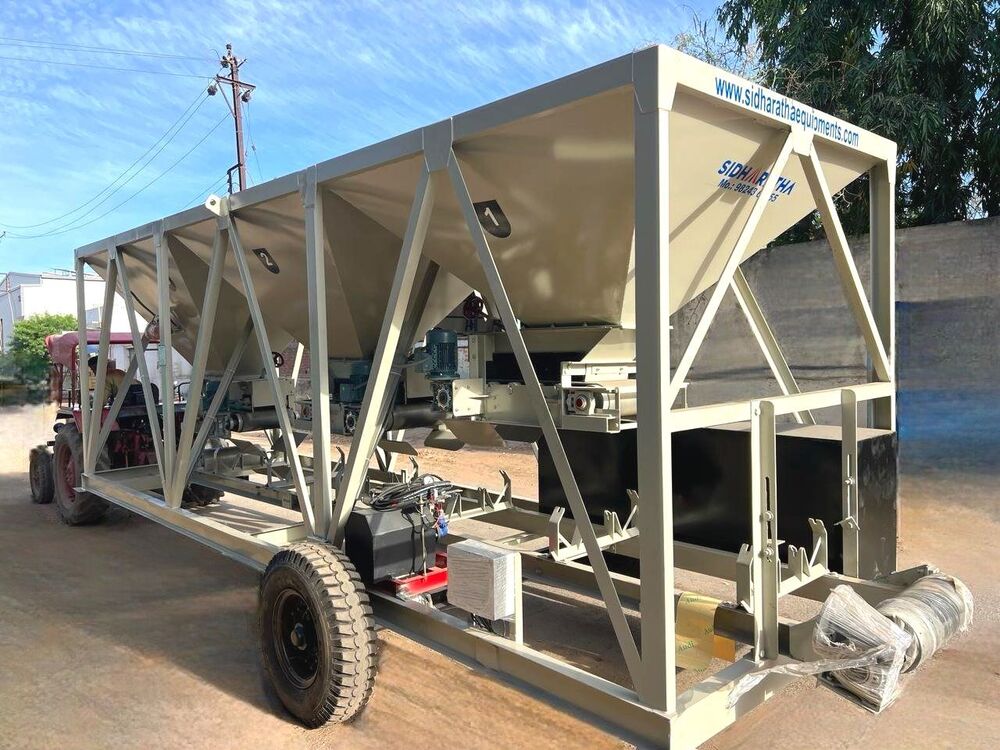

Four Bin Feederï

No. Of Bin

4

4

4

Storage Capacity

40 Ton.

40 Ton.

54 Ton.

Auxiliary Drive Motor

2 HP X 4 Nos.

2 HPX 4 Nos.

2 HP X 4 Nos.

Auxiliary Cony. Belt

450 mm X 2.92 mtr.

450 mm X 2.92 mtr.

450 mm X 2.92 Mtr.

Gathering Drive Motor

5 HP

5 HP

5 HP

Gathering Belt

600mm X 24 Mtr.

600mm X 24 Mtr.

600mm X 24 Mtr.

Auxiliary Cony. Gear Box

Inbuilt Heavy Duty Gear Box

Inbuilt Heavy Duty Gear Box

Inbuilt Heavy Duty Gear Box

Bin Vibrating Motor

0.5 HP

0.5 HP

0.5 HP

Vibrating Screen

Screen Size

45mm X 45mm

45mm X 45mm

45mm X 45mm

Vibrating Motor

1 HP

1 HP

1 HP

Slinger Conveyor

Drive Motor

3 HP

5 HP

5 HP

Cony. Drive Gear Box

Inbuilt Heavy Duty Gear Box

Inbuilt Heavy Duty Gear Box

Inbuilt Heavy Duty Gear Box

Conveyor Belt

500mm X 14.2 mtr

600mm X 14.2 mtr.

600mm X 16 Mtr.

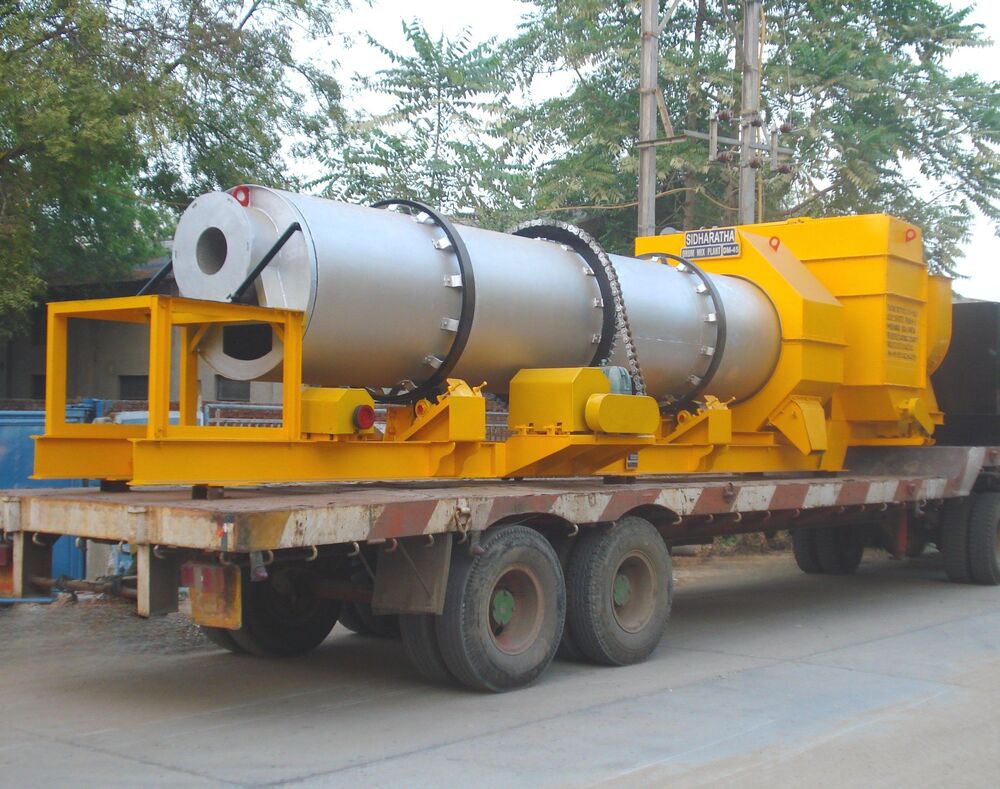

Dryer (Drum) Unit

1.23 mtr. X 6 mtr.

1.54 mtr. X 6.7 mtr.

1.85 Mtr. X 7.31 Mtr.

Drive Motor

20 HP

25 HP

40 HP

Drive Gear Box

Heavy Duty Worm Gear

Heavy Duty Worm Gear

Heavy Duty Worm Gear

Drive Chain Pitch

2.5" Pitch

3.075" Pitch

3.075" Pitch

Main Burner Connected Power

7.5 HP

10 HP

15 HP

Exhauster

10500 CFM

14500 CFM

18500 CFM

Exhauster Drive Motor

20 HP

25 HP

40 HP

Multi Cone Dust Collector

No. Of Cones

12 Nos.

16 Nos.

20 Nos.

Dust Crew Drive Motor

1 HP

1 HP

2 HP

Mineral Filler

1000 Kg. Capacity

1000 Kg. Capacity

1000 Kg. Capacity

Drive Gear Box

Inbuilt Heavy Duty Gear Box

Inbuilt Heavy Duty Gear Box

Inbuilt Heavy Duty Gear Box

Drive Motor

2 HP

2 HP

2 HP

Air Blower

3 HP

3 HP

5 HP

Fuel Tank Capacity

2000 Ltr.

5000 Ltr.

6000 Ltr.

Fuel Tank Drive Motor

2 HP

3 HP

3 HP

Fuel Oil Pump

600 LPH

1000 LPH

1500 LPH

Load Out Conveyor

Conveyor Drive Motor

5 HP

5 HP

7.5 HP

Conveyor Drive Gear Box

Inbuilt Heavy Duty Gear Box

Inbuilt Heavy Duty Gear Box

Inbuilt Heavy Duty Gear Box

Conveyor Belt - HR Grade

500mmX17.9 Mtr. (HR Belt)

600mmX17.9 Mtr. (HR Belt)

600mmX21.2 Mtr. (HR Belt)

Gob Hopper Capacity

1000 Kg.

1200 Kg.

2500 Kg. (Silo)

Hyd. Power Pack

2 HP

2 HP

3 HP

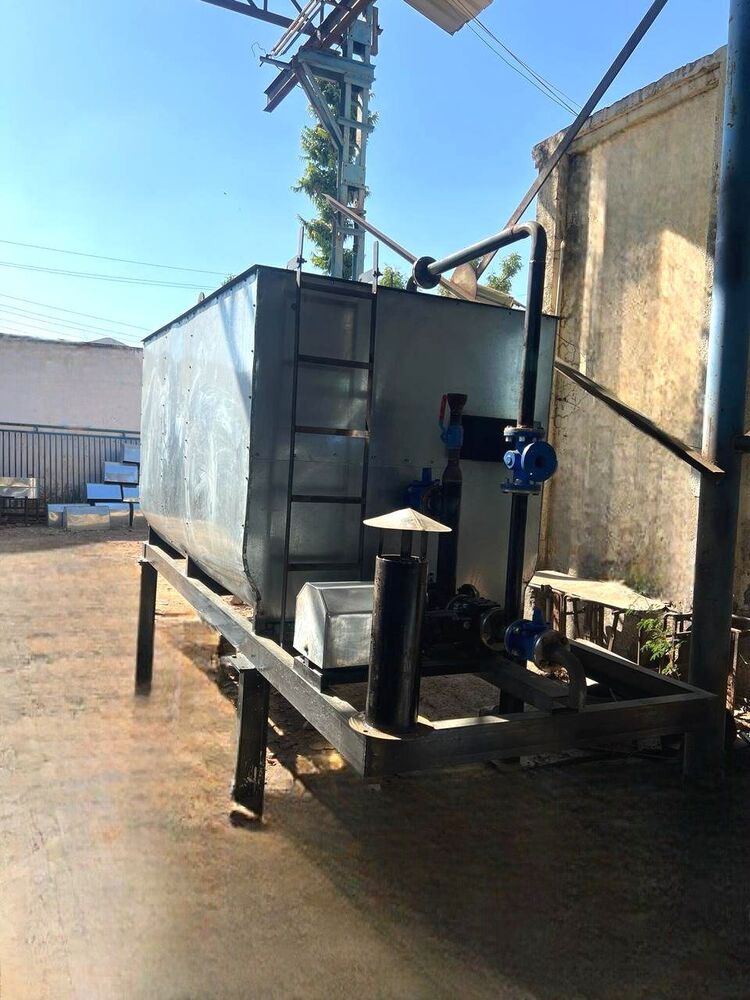

Bitumen Tank

Bitumen Heating Burner

Electronic Burner

Electronic Burner

Electronic Burner

Capacity

16 Ton.

22 Ton.

25 Ton.

Bitumen Drive Motor

5 HP

5HP

5HP

Bitumen Gear Box

Heavy Duty Worm Gear

Heavy Duty Worm Gear

Heavy Duty Worm Gear

Bitumen Pump (Jacketed)

2" X 2"

2" X 2"

2" X 2"

Control Cabin Inbuilt Control Panel

FullyElectronic Automation

Fully Electronic Automation

Fully Electronic Automation

Connected Power

85.5 HP

101 HP

142.5 HP

Open Land Requirement

35 Mtr. X 35 Mtr.

35 Mtr. Xï35ïMtr.

40 Mtr.ïXï40 Mtr.

Optional

Pollution Controll Unit

Pollution Controll Unit

Pollution Control Unit

ï

Ventury Type

Ventury Type

Ventury Type
