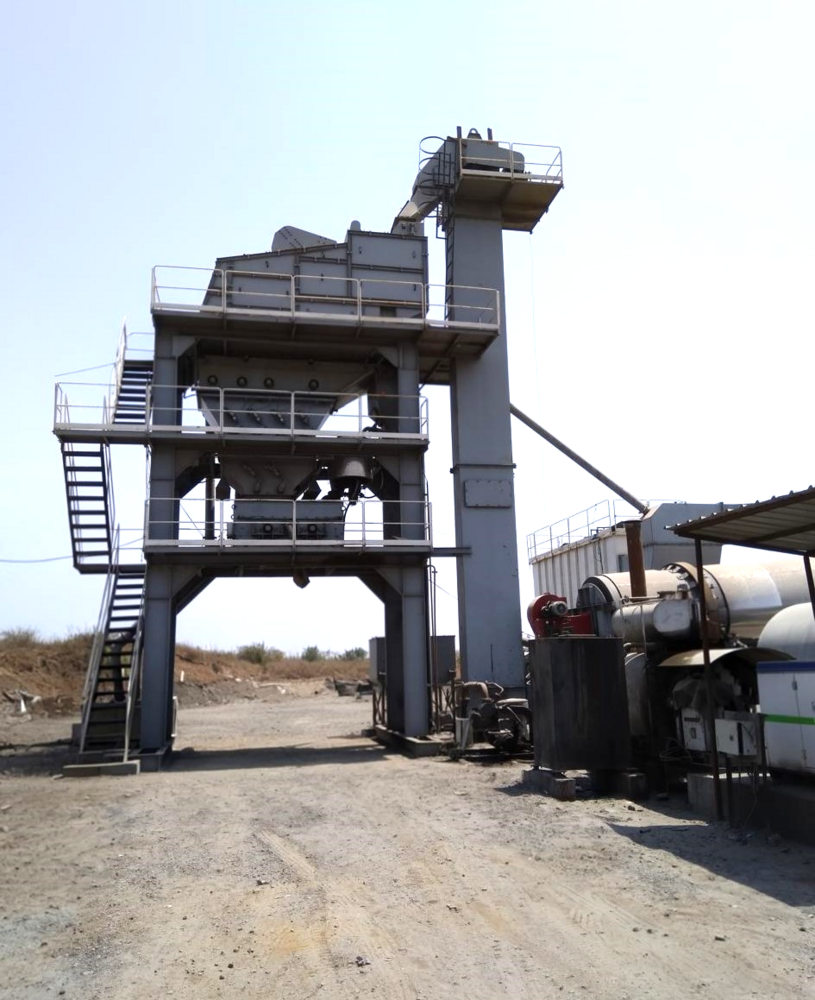

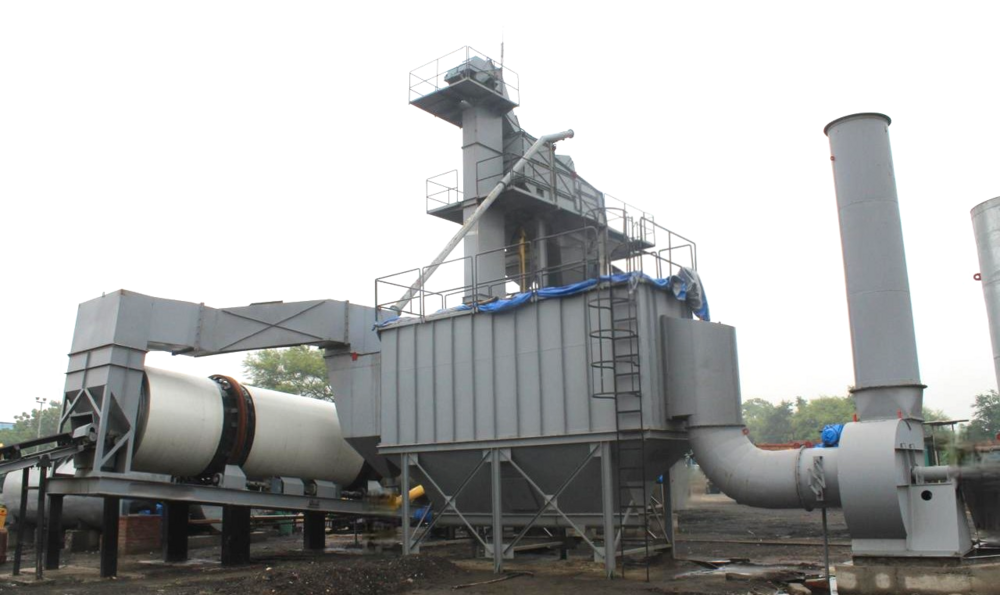

डामर बैच मिक्स प्लांट

Plant Model

1000

1500

2000

Plant capacity at 3 % moisture content

80 t/h

120 t/h

160 t/h

Batch size

1000 kg

1600 kg

2000 kg

Cycle time

45 sec

45 sec

45 sec

Unit

Cold feed bins (No. of Bins )

4

4

4

Charging conveyor (Capacity)

140 t/h

140 t/h

180 t/h

Thermo drum (Dryer (LxD))

6.6 x 1.54 mtrs

7.5 x 1.8 mtrs

8 x 2.1 mtrs

Drive type

4W Friction drive

Burner Type

High pressure, fully automatic, modulating

Fuel

Diesel / furnace oil

Capacity

7.6 MW/hr

14.1 MW/hr

14.1 MW/hr

Hot elevator capacity

140 t/h

140 t/h

180 t/h

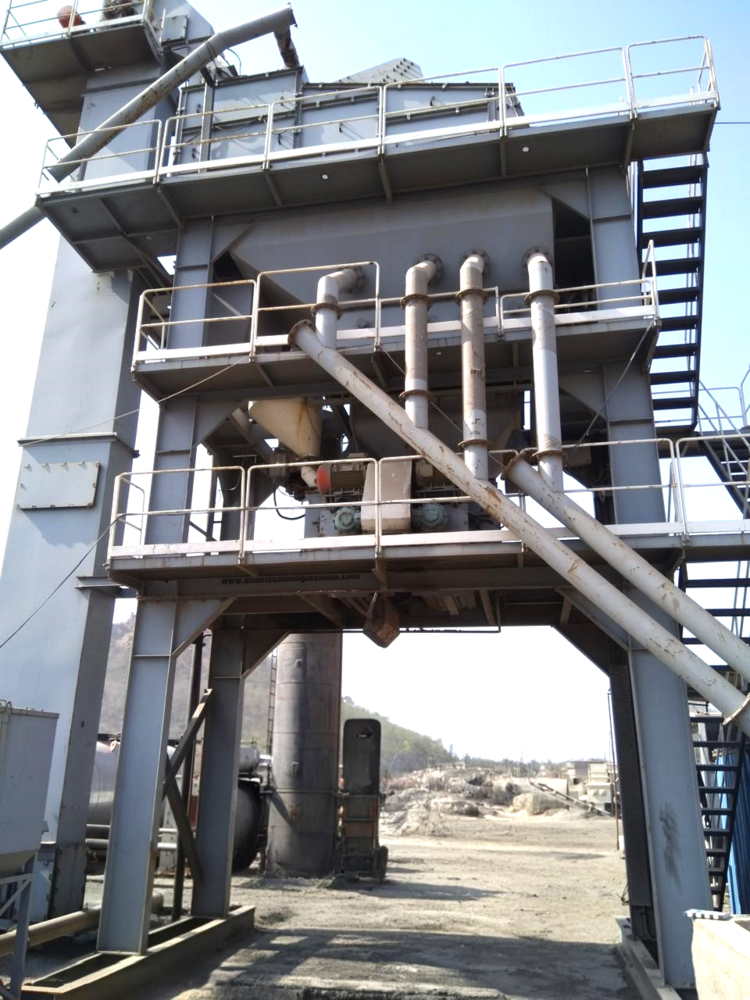

Tower unit

Filler elevator capacity

21 t/h

21 t/h

21 t/h

Screening unit (Screening method)

Inclined linear vibration

No.of deck

4

4

4

Screening capacity

140 t/h

140 t/h

180 t/h

Weighing unit (Aggregate hopper capacity)

1600 kg

1600 kg

2000 kg

Filler hopper capacity

300 kg

300 kg

300 kg

Bitumen hopper capacity

225 kg

225 kg

225 kg

Mixer unit type

Twin-shaft hot oil jacketed

Mixer capacity

1600 kg

1600 kg

2000 kg

Bitumen pump

800 lpm

800 lpm

800 lpm

Pollution Control Unit

Primary type

Centrifugal double cyclone

Secondary type

Bag house filter

Bag house filter

Reverse airflow

Filter area

330 m2

330 m2

330 m2

Control panel type

Fully computerized with manual over-ride

Accessories

Filler silo (Capacity range)

10 Ton

15 Ton

15 Ton

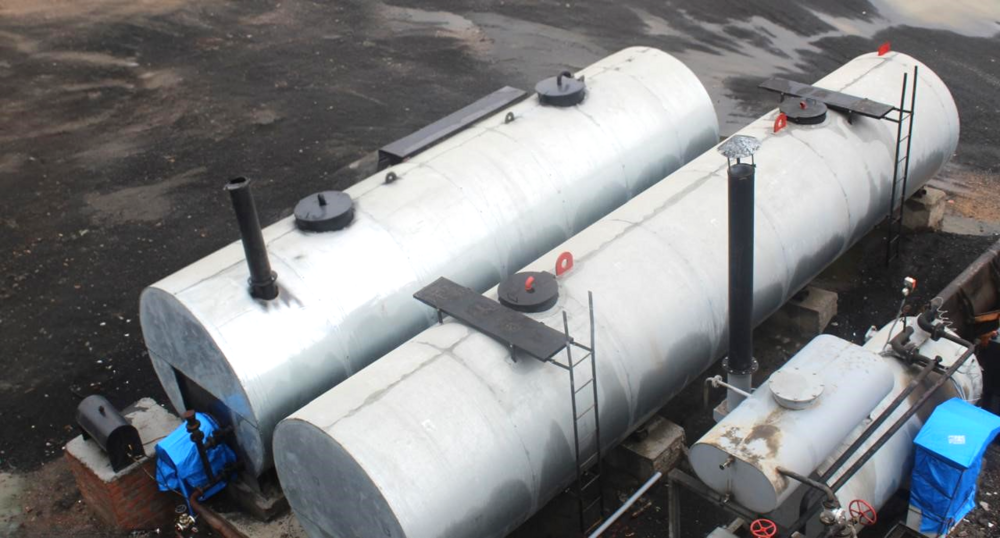

Bitumen tanks (Capacity range)

15 / 25 / 30 / 50 Ton

Heating system

Direct heating / thermic oil heating

Thermic oil heater (Hot oil heater capacity)

300000 / 500000 kcal/hr

Hot mix storage silo (Capacity range)

12 - 200 m3

Plant capacity rated at:

3 % moisture content in cold aggregates

Aggregate density of 1.6 tons / m

Mean sea level

Ambient temperature of 30 C

Hot mix temperature of 150 C
